EM Wireless Charging Pad

Description:

“Where do I plug in” will no longer be whispered in classrooms and collaboration space. Power is now in the table and it’s wireless!

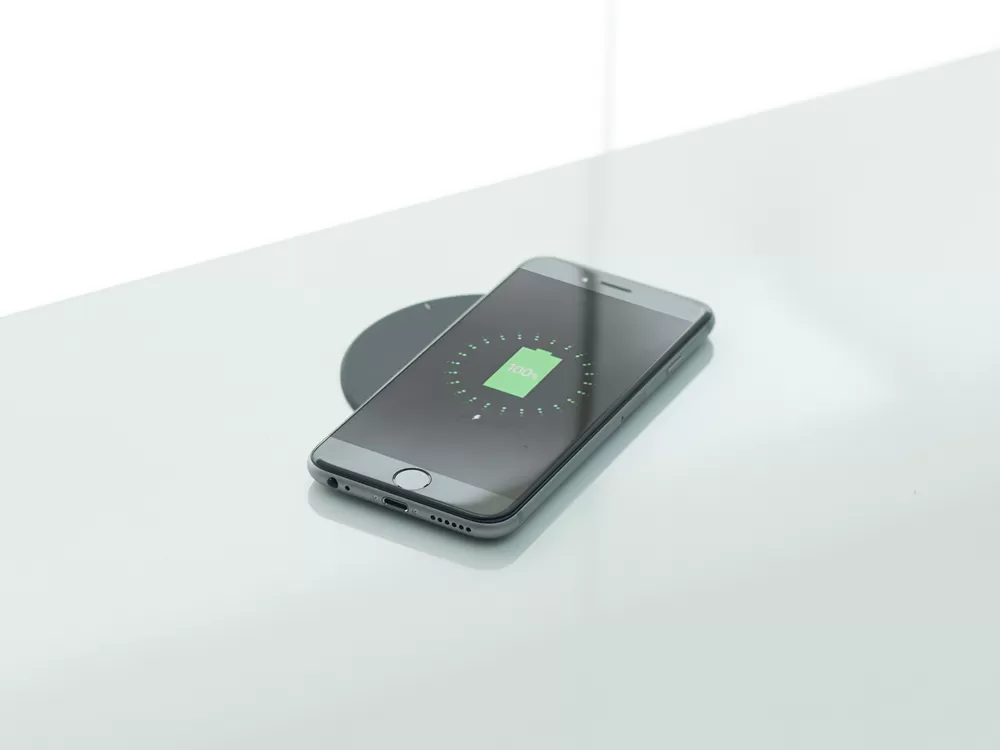

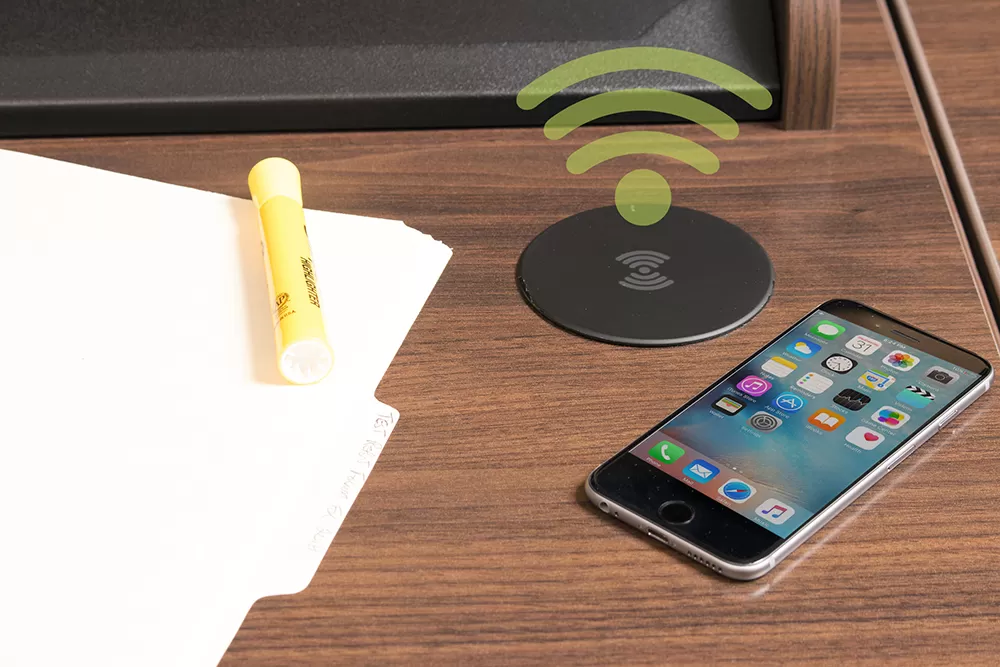

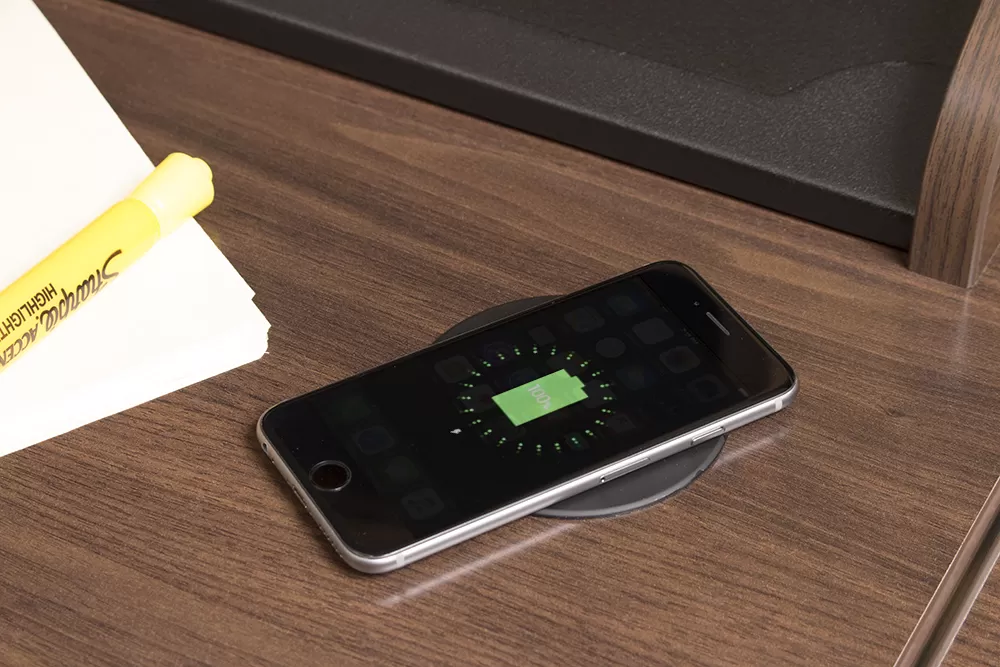

The EM Wireless Charging Pad can easily be added to many Spectrum products to power students and teachers devices. Wireless charging technology uses an electromagnetic field to charge your phone or computer. Once installed, simply place your Qi enabled device over the pad to charge.

Spectrum Products with Wireless Charging

Collaboration Tables

Flex Active Tables
Flex Active Flip Tables
Optio Table
InVision Element Table
InVision Access Nano

Lecterns

Pivot Workstation
Pivot Premier
Honors Lectern
Freedom One eLift
Freedom XRS Lectern
Media Manager Series – Director, Elite, Link, & Compact

Compatible Devices

Specific phones made by the following companies are compatible: Apple, ASUS, BlackBerry, CASIO, CAT, DeWalt, Energy Sistem, Fujitsu, Google, HP, HTC, Kyocera, LG, Mlais, Microsoft, Motorola, mPhone, MTT, NEC, Nokia, Panasonic, Philips, Samsung, Saygus, Sharp, SONY, TECHDY, VERTU, YotaPhone, and ZTE. (Check manufacturer recommendations.)

Qi Enabled devices:
1. 2020 - https://amzoc.com/qi-enabled-devices-list /
2. 2021 - https://qinside.biz/en/support/qi-enabled-phones-2021

Item Numbers: 99057

Uses electromagnetic technology to charge Qi V1.2 compliant IC devices ("Qi" enabled)
LED light confirms pairing / charging
Security tab prevents theft
Requires 3” round cutout to be made by customer
UL-certified

Dimensions: 3.5" dia x 1.125"H
*Cutout required: 3" dia (by customer)

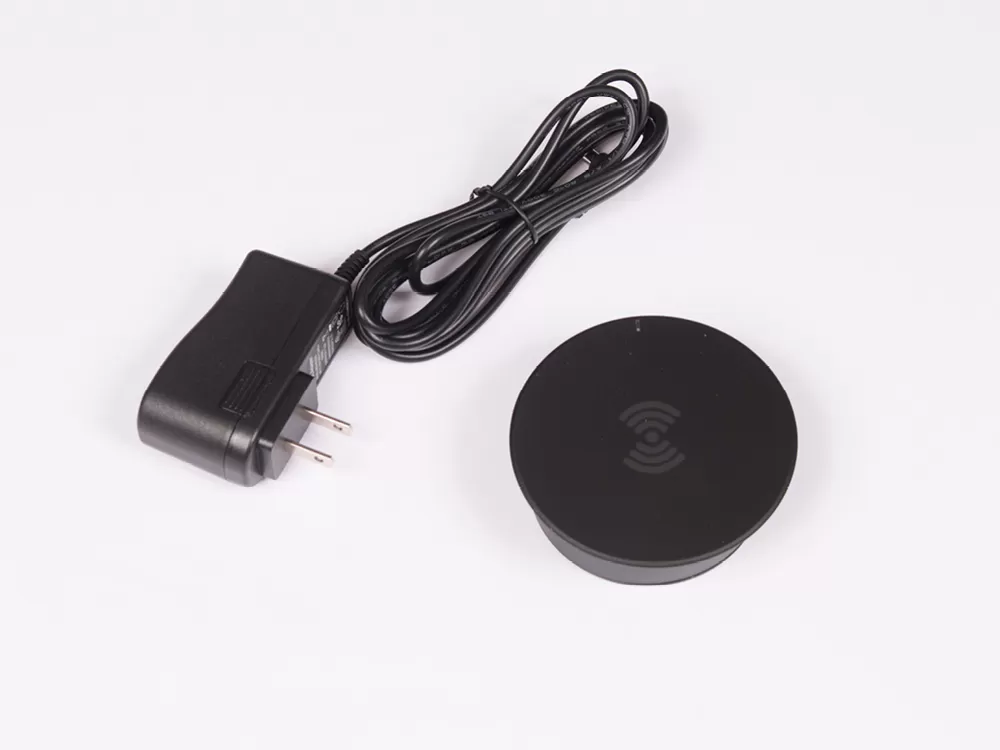

Input: DC 5V (with included DC5V.2A power adapter)
Output: 5W max (with included DC5V.2A power adapter)
Power cord: 8' with DC jack
Shipping weight: 1 lb

*Note: The unit requires a 7” diameter of clearance to work with Qi-enabled phones placed in any orientation. The 3” dia cutout should be located on the worksurface at least 3.5” from any edge.
